Online UPS
Brand:CENTIEL
CENTIEL is a Swiss-based technology innovation company. Highly experienced team of designers, who have developed the first 3 phase-modular fault-tolerant UPS system. Develop, produce and sale high quality high end modular UPSs for critical power applications. like: Data centers, Telecom, Hospitals, Financial Institutions and more…
Product Line:

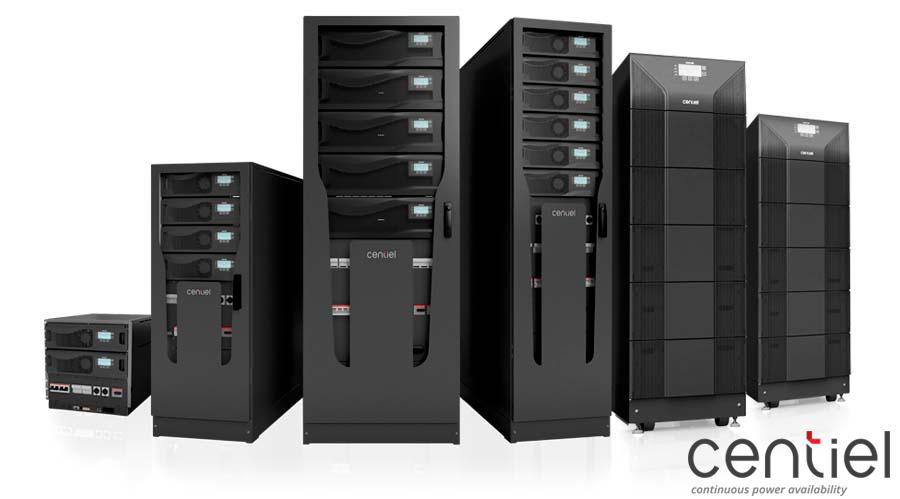

CumulusPower™ Modular Online UPS
Capacity: 10 kW to 3.5 MW
CumulusPower™ is a Swiss made 3-phase, online double-conversion and fully decentralized modular Uninterruptible Power Supply.
From 10kW to 3.6MW CumulusPower ™ provides the maximum flexibility to adapt to any application.
By eliminating any single point of failure, Adding Distributed Active-redundant technology (DARA™), preventing human error and reducing the time to maintain and repair, CumulusPower ™ delivers an industry leading Availability of 9 nines to fulfill the needs of the most critical power applications.
Special Features:
Intelligent Module (IM):
Each module is a complete UPS.The CumulusPower ™ Intelligent Modules are equipped with three independent power converters, one static bypass, all hardware and all software (intelligence and monitoring) functions, making them fully independent and capable of safely isolating from the multi-module system whenever an internal fault occurs.
Distributed Active-Redundant
Architecture (DARA ™):
The architecture of theCumulusPower ™ was designed to respond to the highest availability requirements, through the implementation of the system’s distributed decision-making in an event of a critical failure, and a correct management of the load sharing. The communication between the Intelligent Modules is accomplished by means of a fully redundant TripleMode ™ communication BUS.
Hot-Swappable without Human Error:
CumulusPower ™ modules can be swapped without the need to switch over the load to bypass. Besides that, a per-module parallel isolator fiscally isolates the module from the system reducing the risk of human error and increasing system Availability.
9 nines Availability:
Zero Downtime 99.9999999% 35 milliseconds down-time/year.
Distributed Architecture: No Single Point of Failure
Unity Power Factor:kVA = kW
Ease of Service:
Frontal Access Plug & Play Components.Direct access to components and plug-and-play internal modules minimize mean time to repair (MTTR) and simplifies routine maintenance.
Small Footprint:+ 0.51 MW/m2
Class Leading Availability:
By eliminating any single point of failure, adding Active-redundant technology, preventing human error and reducing the time to maintain and repair,CumulusPower ™ delivers an industry leading Availability of 9 nines to fulfill the needs of the most critical power applications
Advanced TripleMode ™ Communication:
With Triple redundancy in the communication lines and electronic circuits, disconnection or shortcircuit on any of the communication lines does not represent a risk for the system thus eliminating the single point of failure.
Ultra-Safe Eco mode:
With a 99.4% efficiency in Eco mode operation and an ultra-fast reaction time of <1.9 ms, Ultra-Safe ECOmode enables an excellent trade-off between power quality and energy efficiency.
Outstanding Overload Capability:
With a 124% continuous operation in overload condition, mission critical applications can be safe on the event of unexpected load demands.
Reduced Energy Bill:
With a best in class efficiency of 97,1% in double conversion mode (VFI),CumulusPower ™ minimizes energy waste on power protection and cooling system.
Minimized Life-time Maintenance Cost:
The CumulusPower ™ product line was designed to reduce the number of components that need replacement while at the same time reduce the time and cost of such maintenance operations.
Maximum Efficiency Management (MEM):
MEM looks for the most optimized energy efficiency point, if load demand decreases and a lower number of modules can handle the load while maintaining redundancy, the superfluous modules enter into active-sleep mode to optimize overall energy consumption.
Flexible Battery Blocks:
20 to 50 Blocks. Batteries represent a substantial part in a project cost structure. With CumulusPower ™ you have the flexibility to select the number and type of battery blocks in a case by case basis to find the best way to optimize total system cost
Reduced Up-front Investment:
Compared to a standalone UPS solution or centralized UPS architectures, Centiel’s scalable modular UPSs have a lower total up-front investment cost, allowing you to grow your power protection capacity at the pace of the demand.
Reduced Cooling Costs:
CumulusPower ™ industry-leading VFI 97,1% efficiency and its flat efficiency curve, contribute to minimize energy losses and heat dissipation, reducing the size and cost of cooling system.
Eliminate ad-on External Components:
Back-feed protection embedded in every module, maintenance bypass, bypass fuses, 233% higher battery charging current and battery DC breakers embedded at the frame level eliminate the need for external components connections, reducing your total system cost.
Flexibility:
Same core technology different solutions CumulusPower™ fits on a 19” (IM10/20/25) to provide the maximum flexibility to the final application. Centiel’s flexible solution approach can customize a frame solution to satisfy specific needs.
Swiss Quality:
Developed and manufactured in Switzerland,CumulusPower™ provides the highest standards of quality in components and manufacturing processes approved by the Swiss made label.
PremiumTower Stand Alone Online UPS
Capacity: 10 kW to 250 kW
PremiumTower ™ is a Swiss made 3-phase, online double-conversion Uninterruptible Power Supply.
PremiumTower ™ offers built-in internal batteries from 10 to 60kW minimizing the footprint utilization, eliminating extra costs for external battery frames and avoiding complex installation.
The flexibility in the number of battery blocks (30 to 50) allows the system designer to optimize costs vs autonomy time.At the same time, the high efficiency of 96.6% in double conversion (VFI) and 99.4% in Ultra-safe ECO mode guarantees maximum energy savings and the lowest Total Cost of Ownership.
Special Features:
Unity Power Factor:
kVA = kW PremiumTower ™ provides unity power factor.
Outstanding Overload Capability:
With a 120% continuous operation in overload condition.
High Efficiency 96.6% (VFI):
With a best in class efficiency of 96.6% in double conversion mode (VFI)
Ultra-Safe Eco Mode:
With a 99.4% efficiency in Eco mode operation and an ultrafast reaction time of Less than 1.9 ms
High Battery Charging Current:
With the ability to provide up to 5 times more charging current than typical standalone, PremiumTower ™ reduces the total system cost by eliminating the need for external battery chargers.
Exceptional Short Circuit Capability:
With a Short Circuit capability of 3 times nominal current (3 x In),PremiumTower ™ is able to clear output circuit protection in milliseconds.
Flexible Battery Range:
With a wide and flexible battery range of 30 to 50 blocks, costs and autonomy time are optimized.
Minimized Footprint:
With only 0.29 m2 for 10 /20 kW and 0.44 m2 for 30/40/60 kW,PremiumTower ™ optimizes valuable floor space, eliminates the cost of the battery cabinet, and simplifies the installation
Ease of Service:
Direct access to components and plug-and-play internal modules minimize mean time to repair (MTTR) and simplifies routine maintenance.
Internal Isolation Transformer:
If galvanic isolation, voltage step-up or voltage stepdown is required, PremiumTower ™ can integrate the transformer within the same UPS increasing the flexibility on system development.
High Reliability by Design:
Three independent power converters increase system reliability and provide power continuity even in cases of power component failure.
Distributed Active-Redundant Parallel Architecture (DARA):
PremiumTower ™ implements Centiel’s DARA parallel architecture with an unlimited number of parallel units to add redundancy and scalability to the system
Dual Input Feed:
PremiumTower ™ can be supplied with two independent AC sources to further increase the power availability of the installation.
Swiss Quality:
Developed and manufactured in Switzerland,PremiumTower ™ provides the highest standard of quality in components and manufacturing processes approved by the Swiss made label.
